Orienting the ZIF socket correctly.

Solution

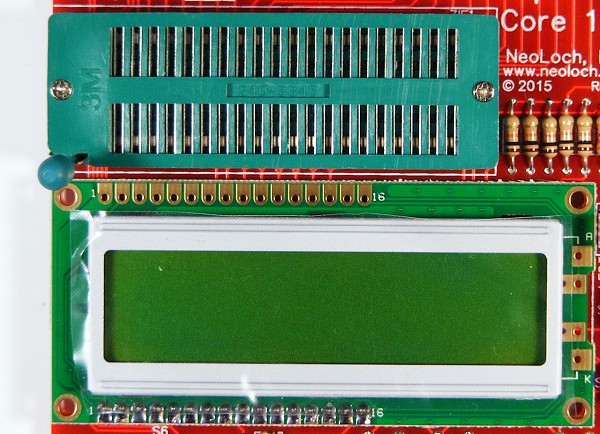

When inserting the ZIF socket into the PCB the lever should be located along the left side of the PCB. The ZIF will not fit correctly if inserted incorrectly, and will cover up R11.

ZIF Socket
